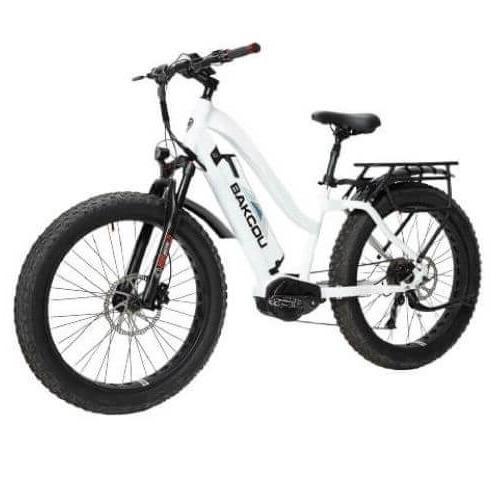

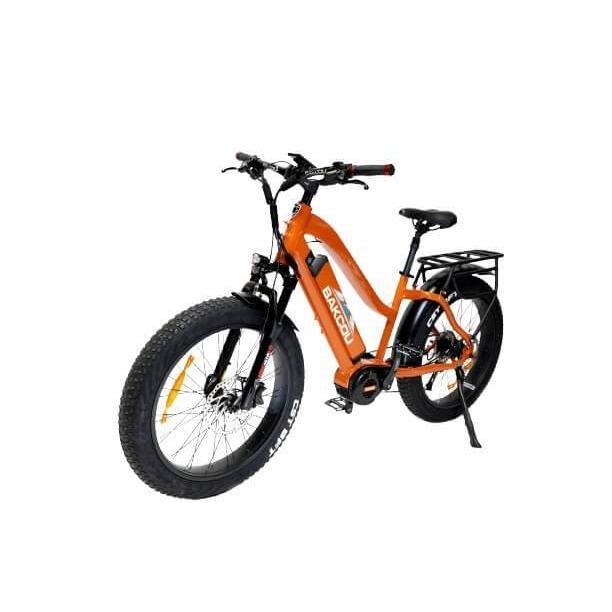

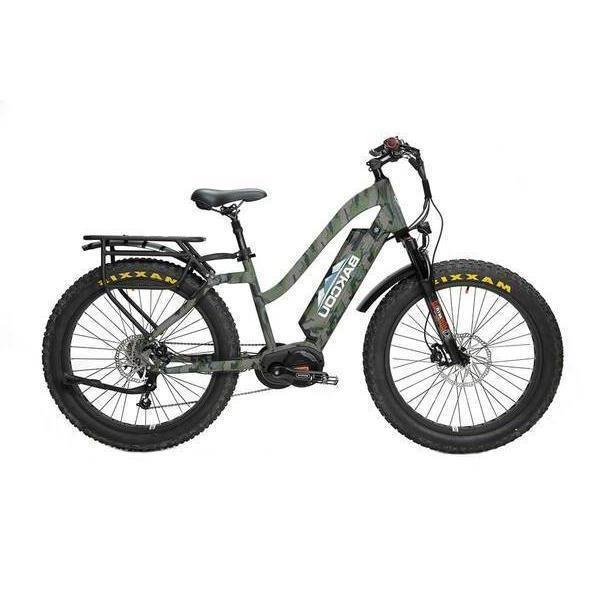

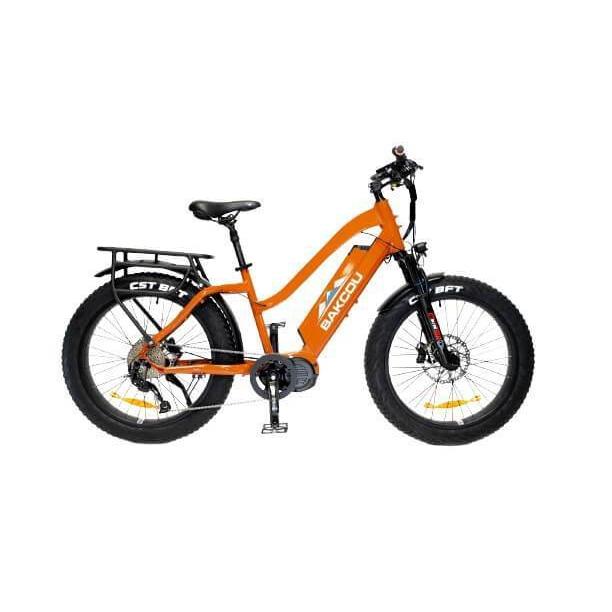

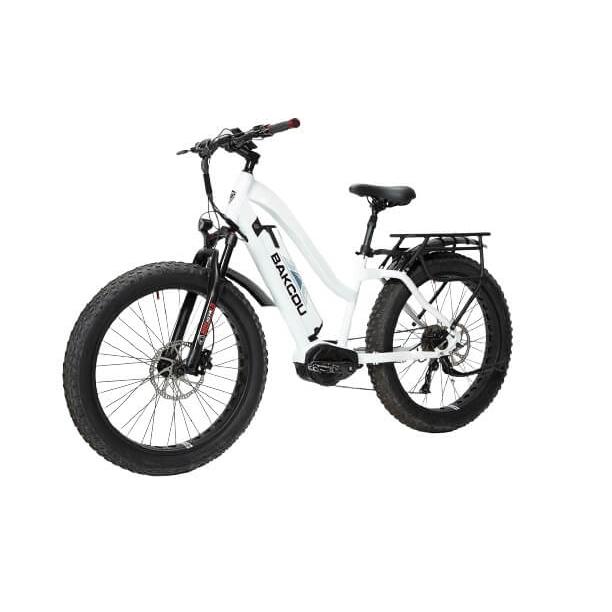

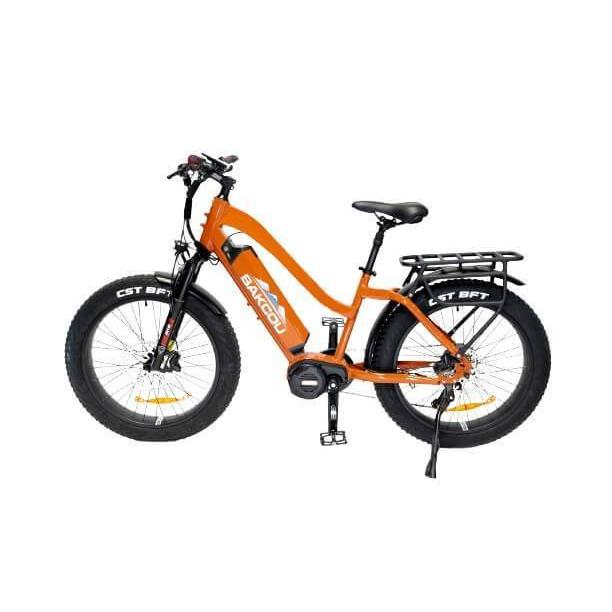

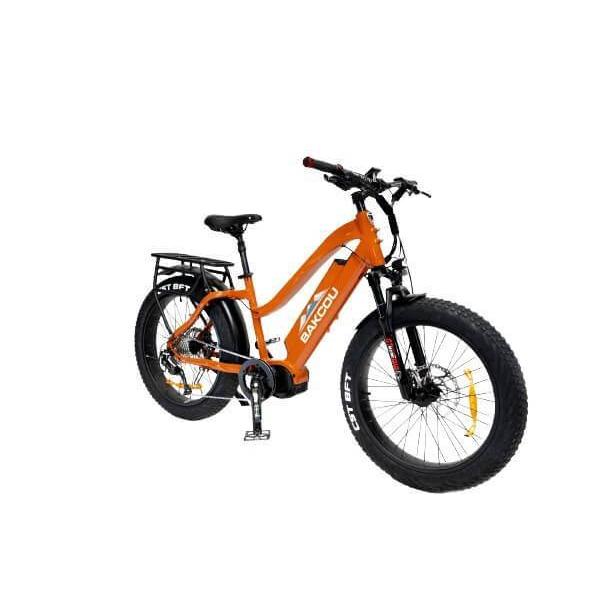

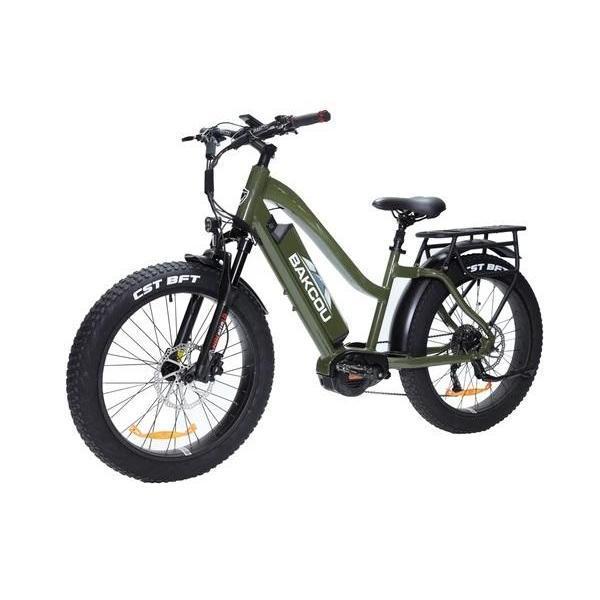

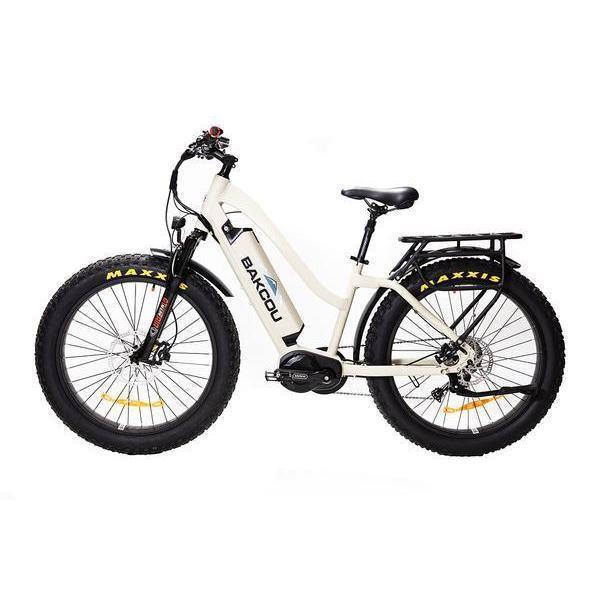

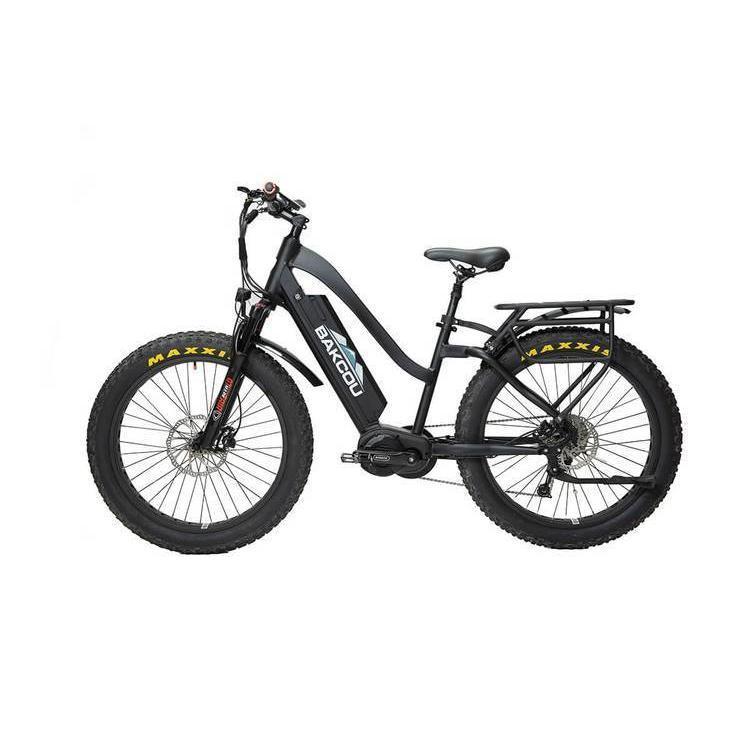

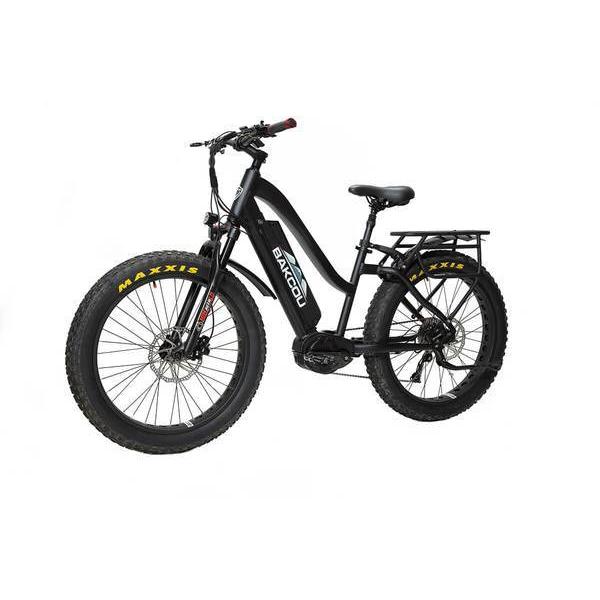

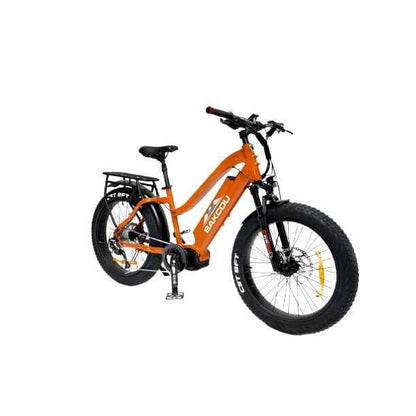

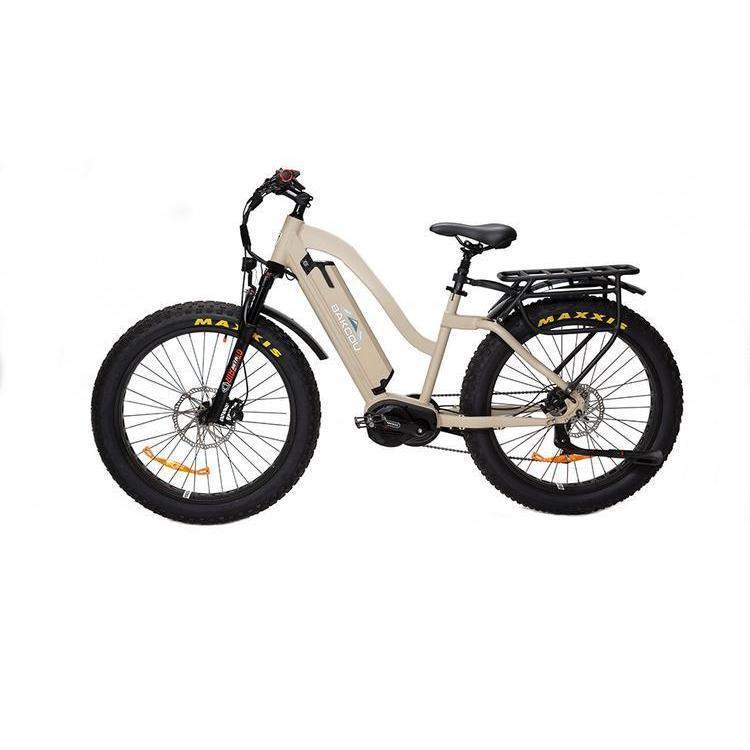

Bakcou Mule 24" Step-Thru (ST) 1000W Fat Tire Adventure Ebike

by Bakcou
Save 9% Save 9%
Original price $5,799.00
Original price $5,799.00 - Original price $6,099.00
Original price $5,799.00
Current price $5,299.00
$5,299.00 - $5,599.00
Current price $5,299.00

Bakcou Mule 24" Step-Thru (ST) 1000W Fat Tire Adventure Ebike

It is built to pack like a mule, with the suspension and gearing to get you there fast. On a quick trail ride or a week in the backcountry, the Mule can handle anything you throw at it.

The Mule is the bestselling electric mountain bike for the last four (4) year, and has been upgraded for 2020 to include a Step-Through frame.

The Bakcou eBike Mule-ST was designed and engineered around the unparalleled power and performance of the Bafang Ultra 1000W mid-drive motor, with its game-changing torque and dual-speed sensors. These highly sensitive sensors record data on crank torque, vehicle speed, and pedal rotation speed, ensuring precise control of the bike while achieving the highest possible efficiency. The Ultra motor can be programmed down to 750W for street use.

bakcou ebikes authorized dealer logo for really good ebikes

1000W Bafang Ultra Mid-Drive Motor w/ 160 Nm Torque Output

Extended Range Batteries Up to 21 Amp Hours

Tektro Dual-Piston Hydraulic Disc Brakes w/ Automatic Motor Inhibitors

Heavy-Duty Aluminum Alloy 6061

Pedal Assist System (PAS) & Left-Side Thumb Throttle

Much More...

backcountry ebikes hunter outside landscape with two electric mountain bikes

The new Bafang Ultra mid-drive electric motor looks similar to other mid-drive electric bicycle motors from Bosch, Panasonic and Brose, but it is a next generation ebike motor like no other. Don’t be fooled by the 1,000W nominal motor output specification; under the hood, the Bafang Ultra is capable of pulling 1,600W from the battery using only its stock settings.

At 160 newton meter (Nm), the torque rating on the Bafang Ultra is also through the roof; it is far more torque than any other mid-drive on the market today. The best and latest models from other industry leaders are only now reaching 90 Nm, meaning the Bafang Ultra packs well over twice the torque of most of its competitors. That translates into wheelie popping, seat-of-the-pants thrill riding that most people have never experienced before on a bicycle.

To increase the torque, Bafang started with a much larger diameter motor than is conventionally used for ebike mid-drives. Its larger diameter rotor means the motor can pull harder against its magnets, providing extra high power and torque. That larger diameter also increases efficiency, as the relative speed of the magnets passing by the motor coils is faster. The magnets on the Bafang Ultra are also mounted slightly further from the copper coils, which keeps them cooler, also increasing efficiency.

The Bafang Ultra’s internal controller is also optimized for extremely high power. Most mid-drive motors use 6 MOSFETs, the small internal circuits that control power flow to the motor. But the Bafang Ultra doubles the standard with 12 MOSFETs. That opens the door to higher power and less energy lost as heat waste.

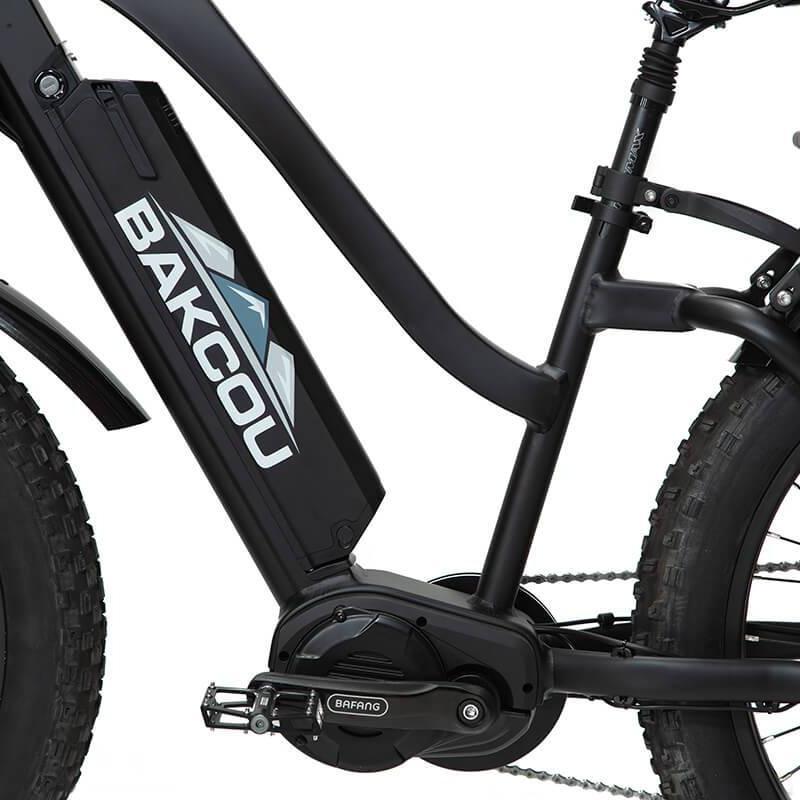

ultra bafang motor



The Bafang Ultra also uses triple gear reduction inside the motor, unlike the double reduction found in most competitors. The gears are helical cut, which helps reduce noise. Of course it won’t be nearly as whisper quiet as Brose’s famous belt reduction mid-drives, or the Bafang BBHSD motor with its teflon gears, but it certainly won’t be as loud as the old school straight cut gears still found in some mid-drives.

Lastly, the Bafang Ultra incorporates a torque sensing ISIS bottom bracket. That results in extra smooth power application that mimics a rider’s natural pedal force (but amplified many times, of course).

Specifications

  • Motor: Bafang Ultra M620 1000W Mid-Drive Motor with Torque and Cadence Sensors (Programmable Down to 750W for Street Use)
  • Battery: Long-Range Downtube-Integrated Battery Options 48V/17.5Ah, 48V/19.2Ah, 48V/21Ah w/ Panasonic Cells
  • Range: 40+ Miles Per Charge, Depending on Battery Capacity and Riding Conditions
  • Digital Display: Bafang DP C18.UART Full Color LCD
  • Brakes: Powerful Tektro Dual Piston Hydraulic Disc Brakes w/ 203mm Front Rotor and 180 mm Rear Rotor & Auto Motor Inhibitors
  • Suspension: BCEB GT MRK 120 mm AIR Fork
  • Frame: 16"
  • Throttle: Left-Side Thumb Throttle
  • Pedal Assist System (PAS): 5 Levels of Pedal Assist and Programmable Max Speed
  • Wheel/Tire: Maxxis Minion 24" x 4.0" for Unparalleled Traction and Control
  • Gearing: Shimano Alivio 9-Speed, 40t Front 11 x 36t Cassette (Rohloff Internally-Geared Hub Upgrade Option Available)
  • Steering: Wide 740mm Handlebars for Greater Stability
  • Grips: Locking Ergonomic Handlebar Grips
  • Seat Post: Shock Absorbing Suspension Seat Post (Swap Out Standard Post for Lower Seat Height)
  • Pedals: Aggressive Skid-Proof Wide Stance Pedals
  • Guards: Front & Side Rear Derailleur Guards
  • Min. Seat Height: 32"
  • Recommended Rider Height4'-10" to 5'-8"
  • Stand Over Height: 24"
  • Bike Weight: 60 Lbs.
  • Load Capacity: 300 Lbs.
  • Box Dimensions & Weight: 63" x 15" x 33" (115 Lbs.)
  • Assembly: The Mule 24" ST comes mostly assembled. Final assembly includes attachment of the handlebar, pedals, front wheel, light and fender. Please see the assembly pdf manual below.
  • Tools Required: 4mm, 5mm & 6mm Hex (Allen) Keys, 10mm & 15mm Wrenches (included)
  • Warranty: 1 Year
  • Shipping: Free shipping to the lower 48. For shipments to Alaska, Hawaii and Canada, Shipping is $500 for orders under $6000 and $800 for orders $6000 and above.

In the following video, you get a complete walkthrough on the Bafang full-color display that comes with the Mule.

Bakcou eBikes Accessories

Please consider the following accessories for your new Mule, and add them to your cart before checkout:

Owners Manuals



Are you new to ebikes? Would you like to do a little more reading before making a decision? Well, check out our Free Ebike Buyers Guide, read some of our Verified Buyer Reviews (there are over 200), take a look at our eBike Encyclopedia, and even take a look (and post some questions) at Endless-Sphere, the world's largest eBike forum, or on the ebike subreddit.
